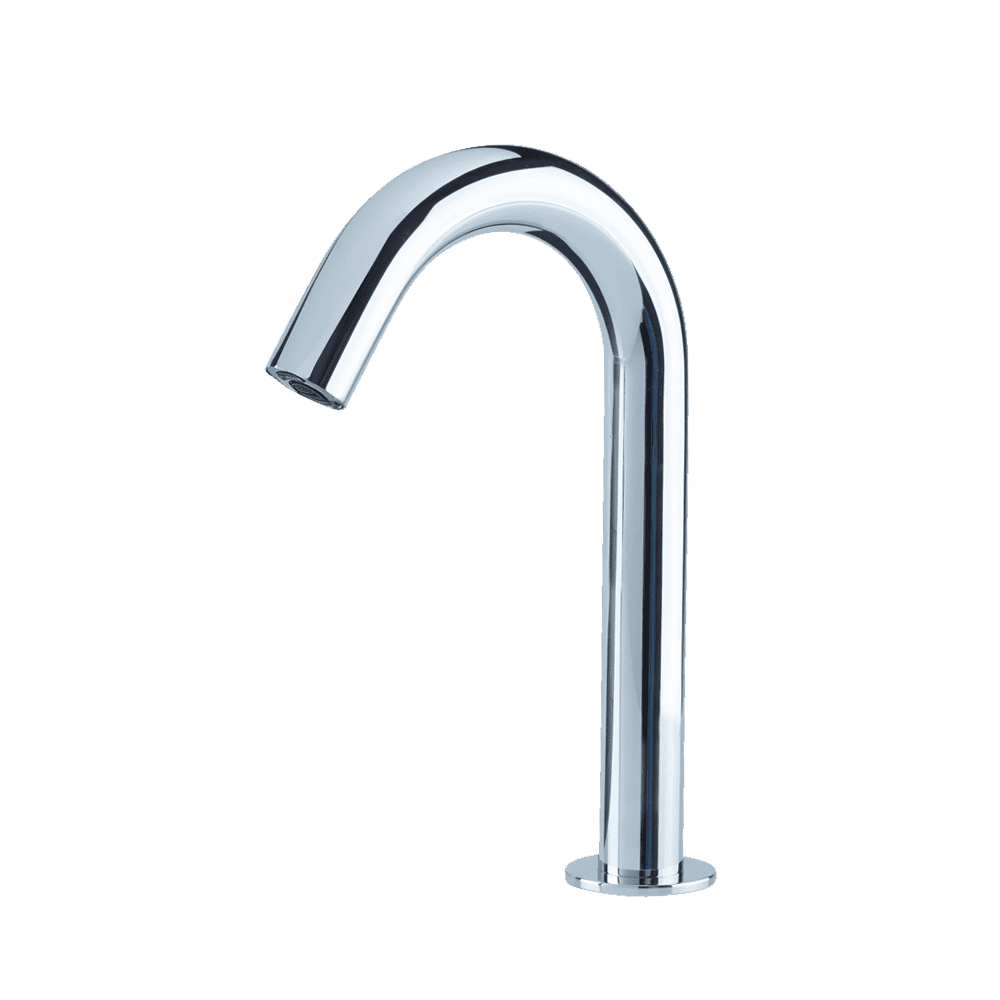

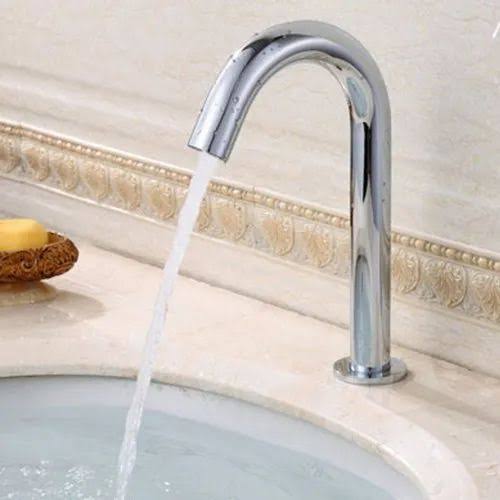

Automatic Sensor Tap T-104
Specification
- Dimension : L-240, Distance of premix from bottom-162 mm,
- Control Box: L-124 mm, W-90 mm, D-54 mm
- Material : Chrome Plated Brass Metal Body
- Power : 220V AC / DC 6V - 4xAA Alkaline Batteries
- Application Area : Basin Mounted
- Sensing Range : 150 mm Adjustable
- Water Pressure : 0.02 Mpa-0.8 Mpa, *0.05 Mpa is minimum Required
- Pressure for Decent Flow of Water
- Volume of Water per minute : 1.2 lit/min to 2-3 lit/min (based on water pressure)
- Protection : IP56
- Ambient Temperature : 0.1°C - 50°C
- Dia of Inlet & Outlet : DN 15 (1/2 inch BMP)
- USP : Mouth Sensor with stylish curve-neck design
